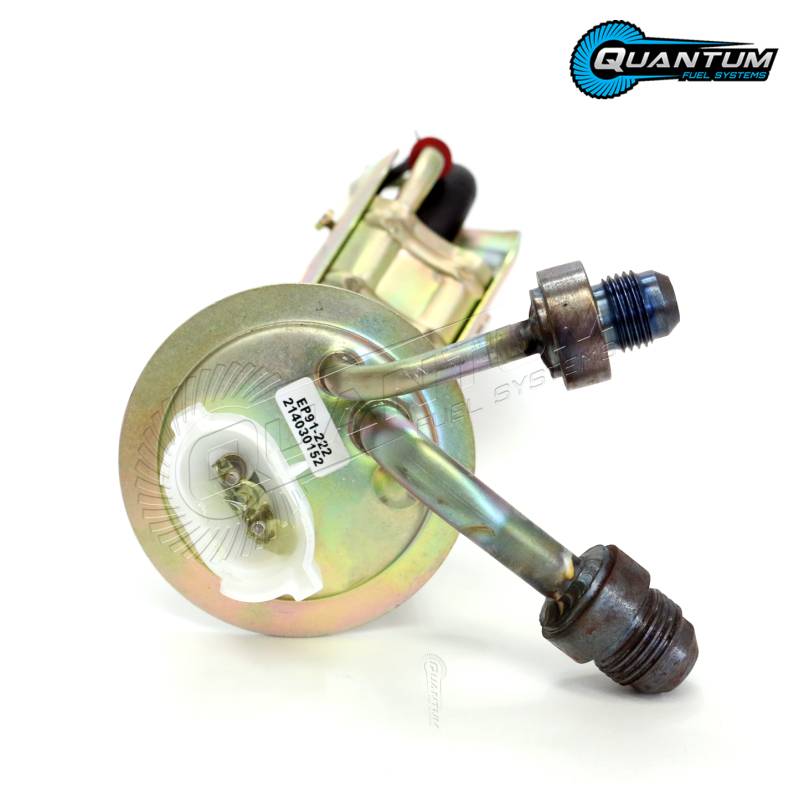

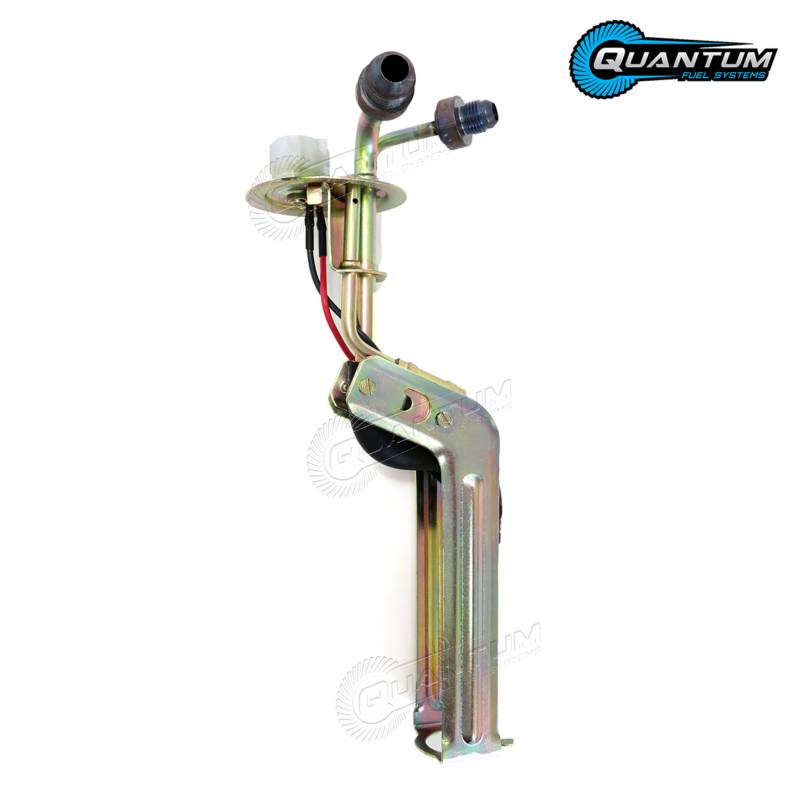

Quantum AN Fitting Fuel Pump Hanger -8AN/-6AN for 1986-1997 Ford Mustang (Without Pump)
HFP-AN50-H
Note:
This hanger does not include the fuel pump. It includes the hanger itself,
Viton tank seal, and a PTFE corrugated flex hose. The HFP-AN50 is a direct
drop-in AN fitting hanger for all 1986-1997 V8 Mustangs. The factory hanger
from 1986-1993 used a 5/16" feed tube and a microscopic 1/4" return, so even
if you were to braze/ tig weld fittings to your factory hanger, the 1/4"
return tube poses a significant restriction. Enter the all-new HFP-AN50
hanger. Not only has the return tube been enlarged to 5/16", it has also
been lengthened, and now extends all the way to the bottom of the hanger,
allowing fuel to flow directly to the bottom of the tank, preventing fuel
aeration. The hanger comes standard with an 8AN fitting on the feed size,
and 6AN fitting on the return side. Every HFP-AN50 hanger includes a
corrugated teflon (PTFE) flex hose to connect the fuel pump outlet to the
feed tube on the hanger, eliminating all rubber inside the tank. A new
Viton tank seal is also included, making this a comprehensive solution for
any fox body and SN95 owner looking to make BIG POWER.
Shipping: FREE PRIORITY SHIPPING WITHIN THE US & TERRITORIES
Pricing:
$109.98
Details
- HFP-AN50-H
- HFP-AN50-H
- Quantum
- New
Categories
Shipping Information
- Item Requires Shipping
- 10.0 lbs.
- W5.0000” x H5.0000” x L5.0000”
- USPS Priority Mail / First Class Small Items
- FREE PRIORITY SHIPPING WITHIN THE US & TERRITORIES
