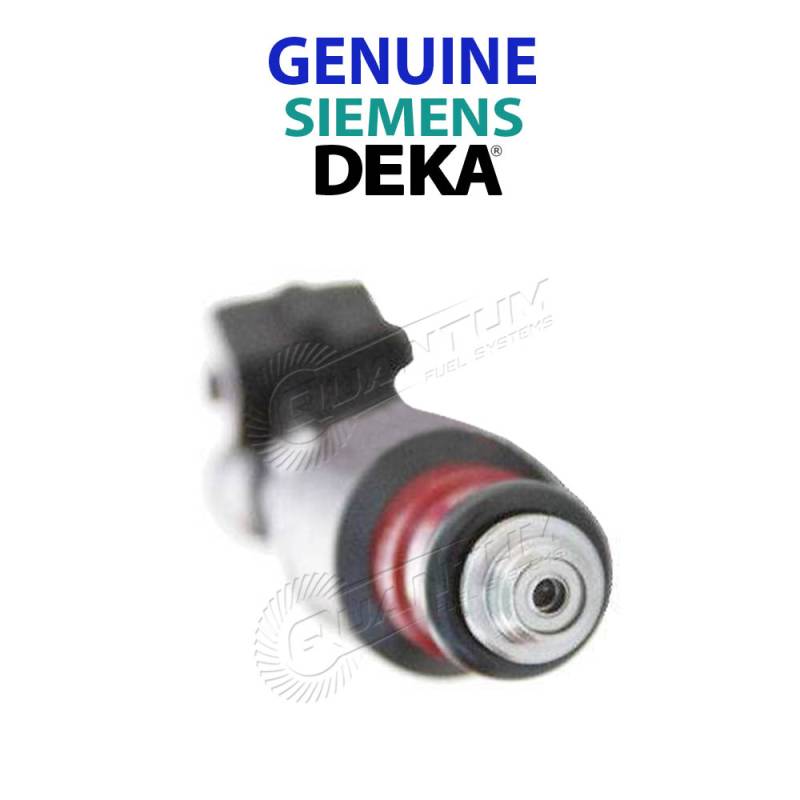

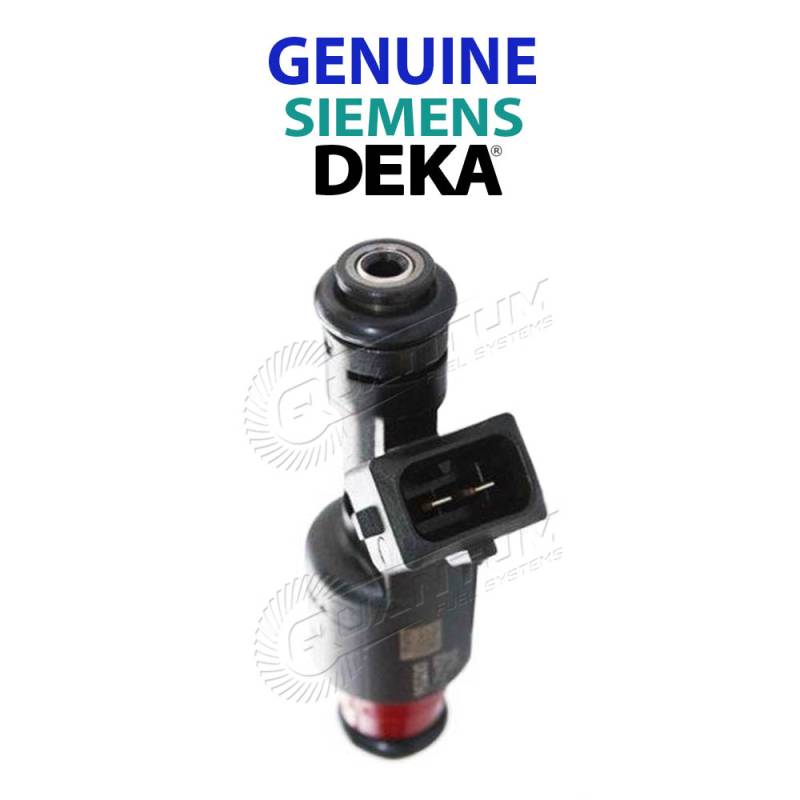

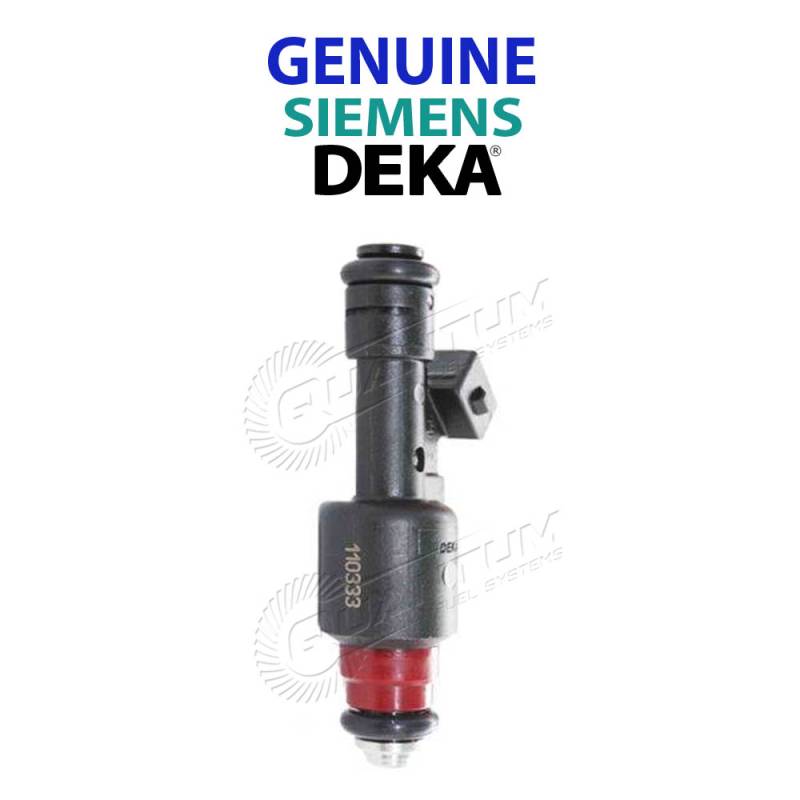

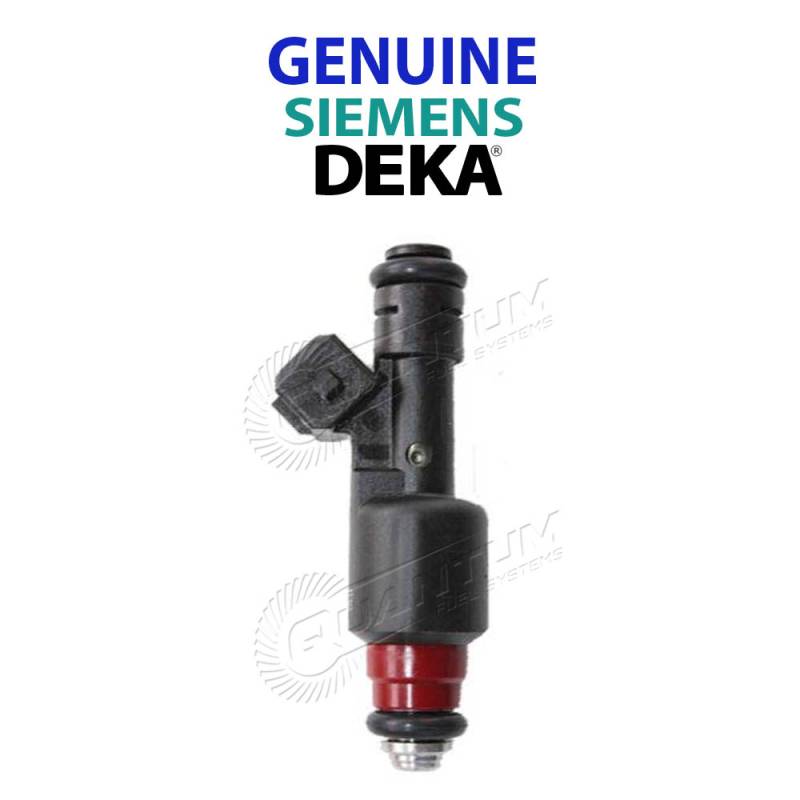

GENUINE SIEMENS DEKA 220LB 2350CC FUEL INJECTORS EV1 14.5mm ORings 2310cc FI11242 110333 (1 Injector)

Specifications:

• Coil Resistance: 2.27 Ohms / Low Impedance / Low-Z (ECM peakd/hold driver may be required)

• Static Flow Rate @ 43.5PSI ( 300kPa / 3Bar ) w/Gas: 228 lb/hr = 2350 cc/min

• Static Flow Rate @ 50PSI ( 3.5Bar) w/Gas: 240 lb/hr = 2530 cc/min

• Static Flow Rate @ 58PSI ( 4.0Bar) w/Gas: 260 lb/hr = 2725 cc/min

• Compatible with ALL fuels; Flex Fuel E85, Standard Pump Gasoline, E100, Leaded Race Gas up to 120 octane, E10, E25, C85, M100

• Gain: 0.11ms/mg

• Offset: 0.64ms @ 14V

• Factory fitted with Viton upper and lower o-rings

• O-Ring Size: 14.5mm (Standard Bosch EV1 size)

• Turn on time @ 14VDC: 1.5ms

• Turn off time: @14VDC: 1.3ms

• Connector: Bosch EV1 / Jetronic

• Series: DEKA IV / 4

• Orifice Type: Single hole disc

• Spray Pattern: 10-15 Degree

• Body Design: Pencil Style

• Body Diameter: 20mm

• Body Length: 64 mm O-ring to O-ring,

• Overall length: 75mm
