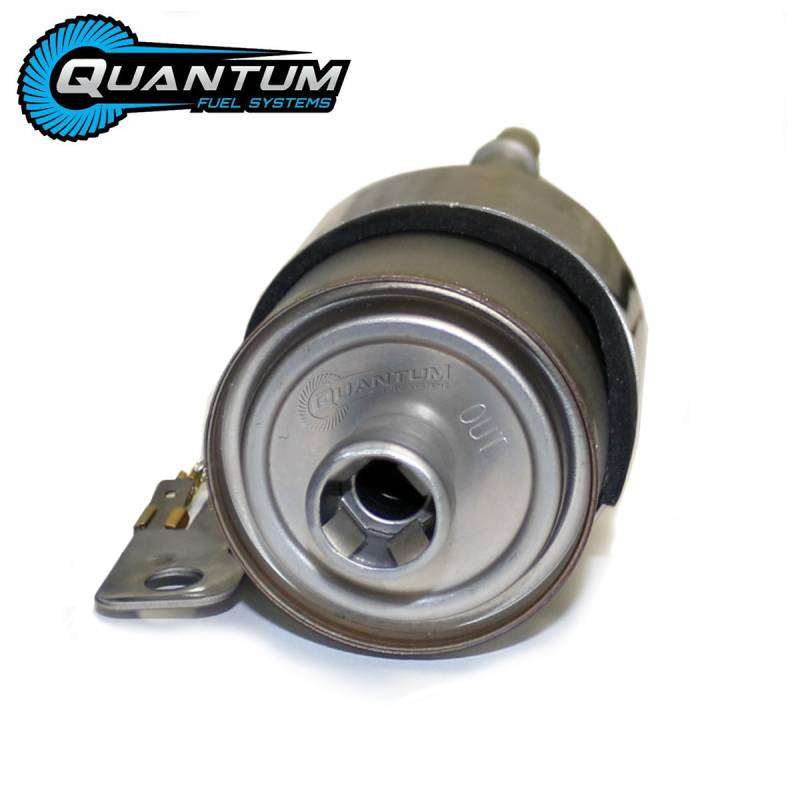

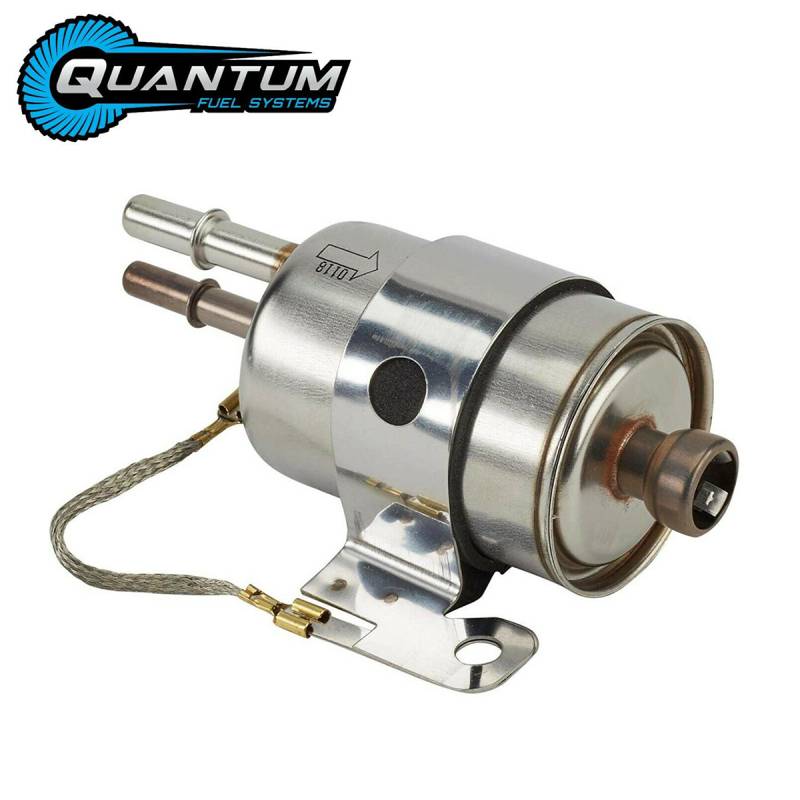

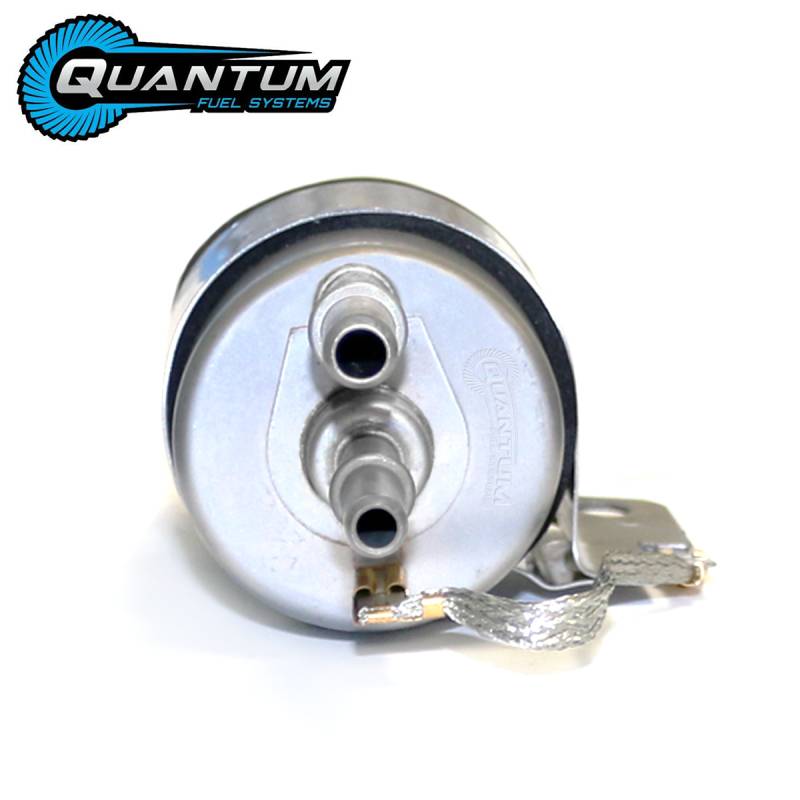

Quantum OEM Replacement Fuel Pressure Regulator/ Filter for 1999-2004 Chevrolet C5 Corvette, Replaces WIX 33737

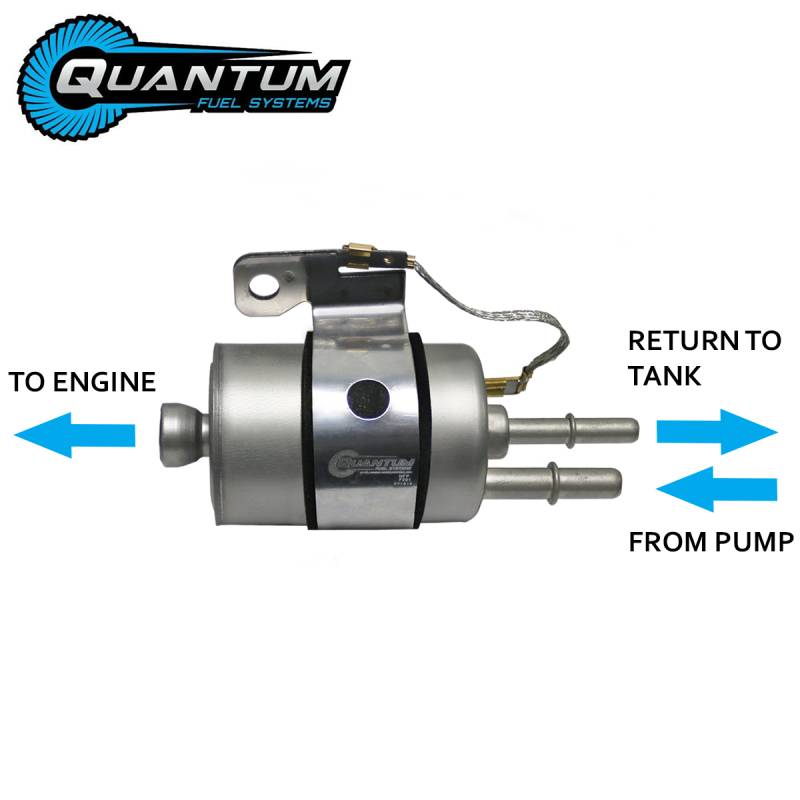

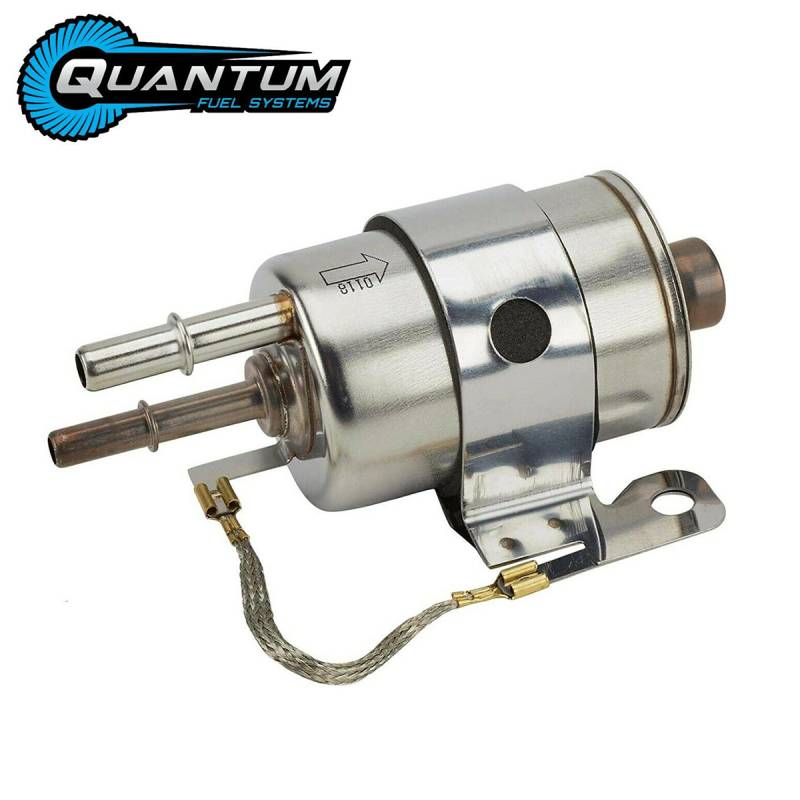

Using the C5 Corvette regulator/ filter is the tried and true method of providing all LS-based motors with the 58psi base pressure they require. Usually mounted close to the tank, this regulator has a fixed (non-adjustable) fuel pressure of 58psi and also provides inline filtration between the fuel pump and the injector rail. Both the feed (from the tank) and the return will connect to one side, and the single outlet will go to the injector rail on the motor. Includes mounting bracket and grounding strap as shown.

SPECIFICATIONS:

• 58PSI Fixed Pressure
• Nominal Micron Rating: 5
• Combination Fuel Pressure Regulator/ Filter
• Inlet Size: 3/8" Male Quick Connect
• Return Size: 5/16" Male Quick Connect
• Feed Size (to Engine): 3/8" Female Quick Connect
• Supports 550-600HP
• 100% Brand New
• Lifetime Warranty
• Fits All 1997+ Gen III and Gen IV LS Series 4.8, 5.3, 5.7L, 6.0, 6.2, 7.0L motors
