Quantum LS Swap C5 Corvette Fuel Pressure Regulator/Filter + 8/6AN Fittings for Chevrolet Corvette 5.7L 1999-2004, Replaces Wix 33737

QFS-F201-AN68

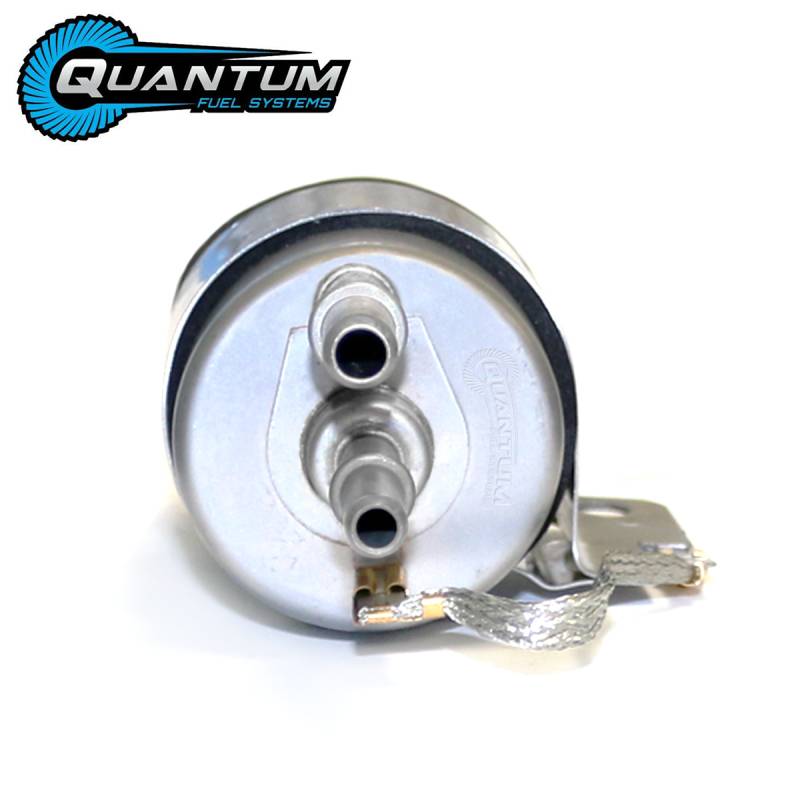

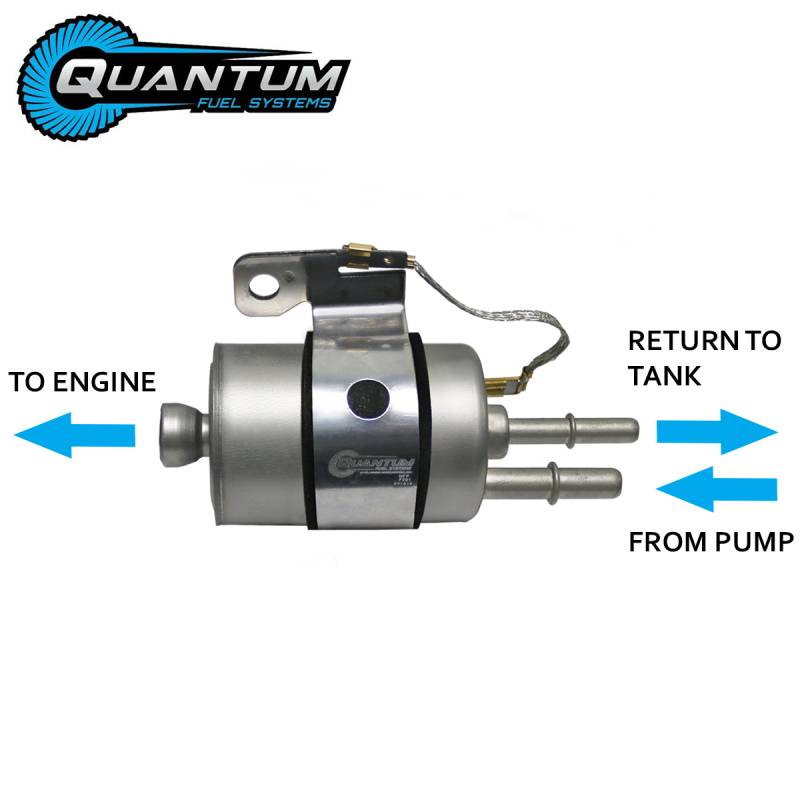

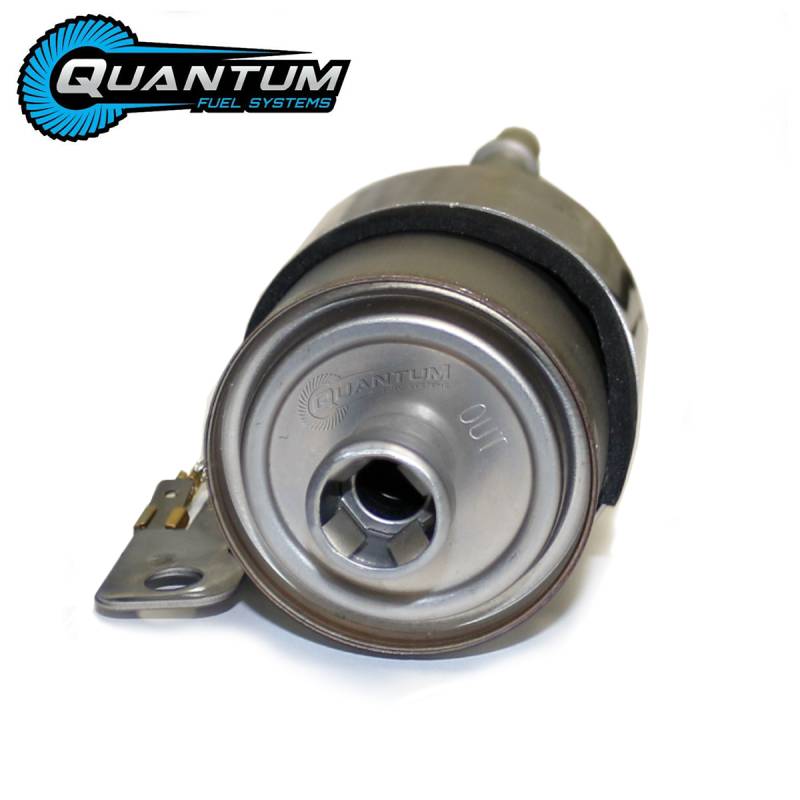

Using the C5 Corvette regulator/ filter is the tried and true method of providing all LS-based motors with the 58psi base pressure they require. Usually mounted close to the tank, this regulator has a fixed (non-adjustable) fuel pressure of 58psi and also provides inline filtration between the fuel pump and the injector rail. Both the feed (from the tank) and the return will connect to one side, and the single outlet will go to the injector rail on the motor. Includes mounting bracket and grounding strap as shown.

Shipping: FREE FIRST CLASS SHIPPING WITHIN THE US & TERRITORIES
Pricing: $62.98
Qty:
USPS Priority Mail / First Class Small Items

Description

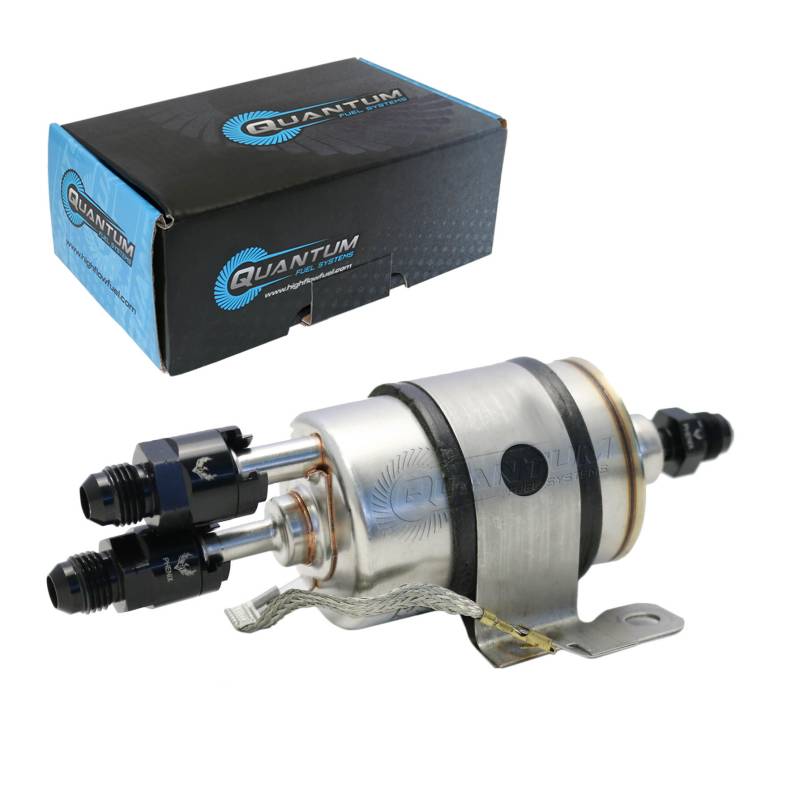

INCLUDES:

  • QFS-F201 Filter
  • [2] Phenix 6AN screw back fuel rail fittings
  • [1] Phenix 8AN male quick connect fitting

SPECIFICATIONS:

  • 58PSI Fixed Pressure
  • Nominal Micron Rating: 5
  • Combination Fuel Pressure Regulator/ Filter
  • Inlet Size: 3/8" Male Quick Connect
  • Return Size: 5/16" Male Quick Connect
  • Feed Size (to Engine): 3/8" Female Quick Connect
  • Supports 550-600HP
  • 100% Brand New
  • Lifetime Warranty
  • Fits All 1997+ Gen III and Gen IV LS Series 4.8, 5.3, 5.7L, 6.0, 6.2, 7.0L motors
