Quantum 450LPH Fuel Pump Hanger -8AN/-6AN Fittings

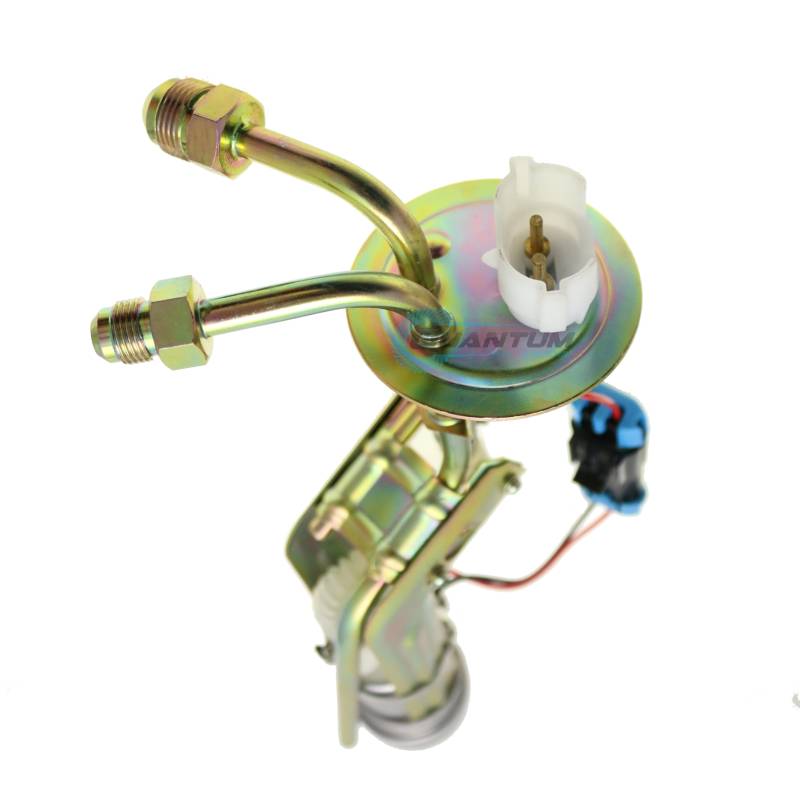

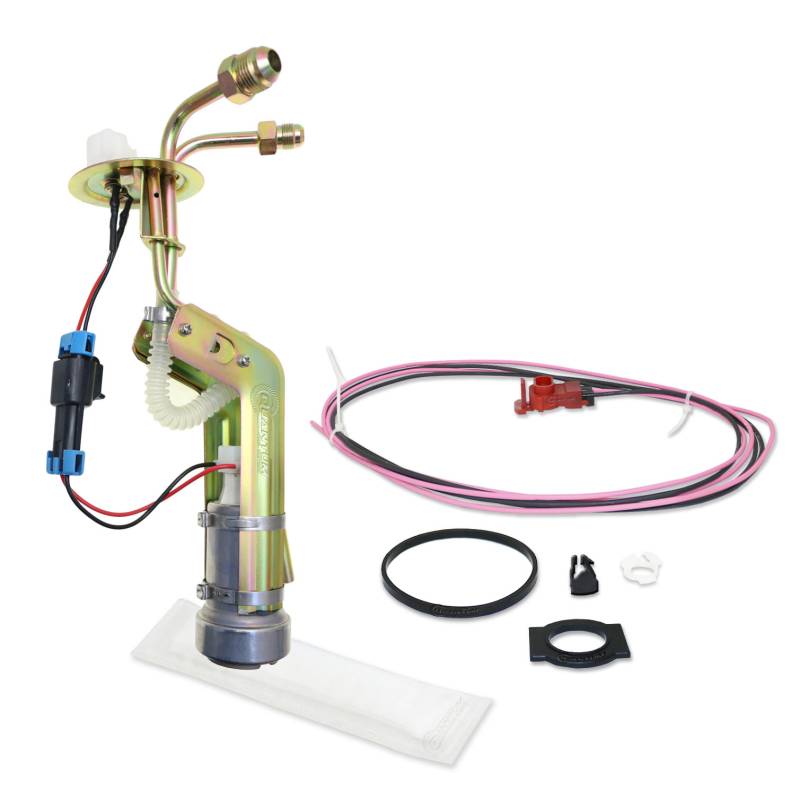

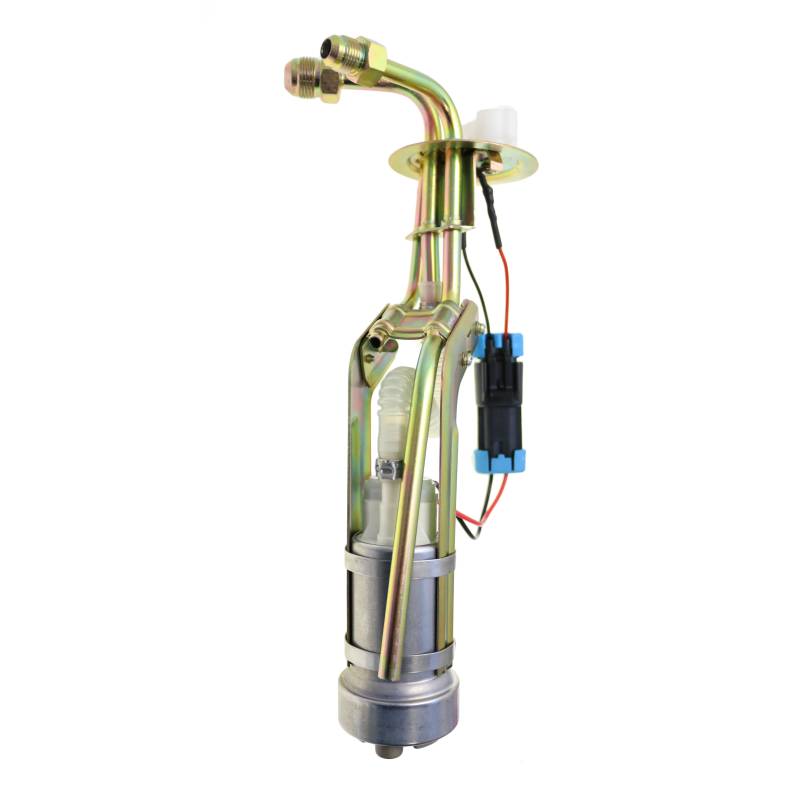

The HFP-AN267 is a direct drop-in AN fitting hanger for all 1986-1997 V8 Mustangs.  The factory hanger from 1986-1993 used a 5/16" feed tube and a microscopic 1/4" return, so even if you were to braze/ tig weld fittings to your factory hanger, the 1/4" return tube poses a significant restriction.  Enter the all-new HFP-AN267 hanger.  Not only has the return tube been enlarged, it has also been lengthened, and now extends all the way to the bottom of the hanger, allowing fuel to flow directly to the bottom of the tank, preventing fuel aeration.  The hanger comes standard with an 8AN fitting on the feed size, and 6AN fitting on the return side.  Included with every HFP-AN267 hanger is a preinstalled Walbro E85 Specific 450LPH Fuel Pump (PN: F90000267). The Walbro F90000267 is a TRUE E85 fuel pump, it's not only "E85 compatible" as others claim.  As such, every HFP-AN267 hanger uses a corrugated teflon flex hose to connect the fuel pump outlet to the feed tube on the hanger, eliminating all rubber inside the tank.  A new Viton tank seal is also included, making this a comprehensive solution for any fox body and SN95 owner looking to make BIG POWER.
