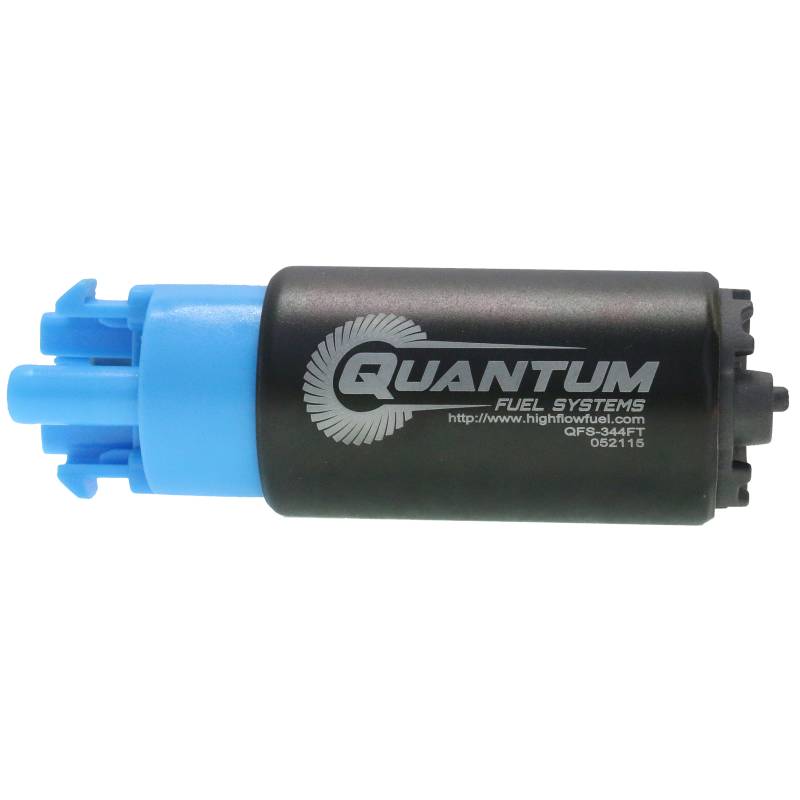

Quantum 265LPH Intank Fuel Pump w/ Regulator For Polaris Sportsman 800 / X2 2008-2014, Replaces 2204308, 2205081, 2205092, 2520776, 2520777, 2520865, 2520875, 2521230, 2520464

QFS-344FT-P

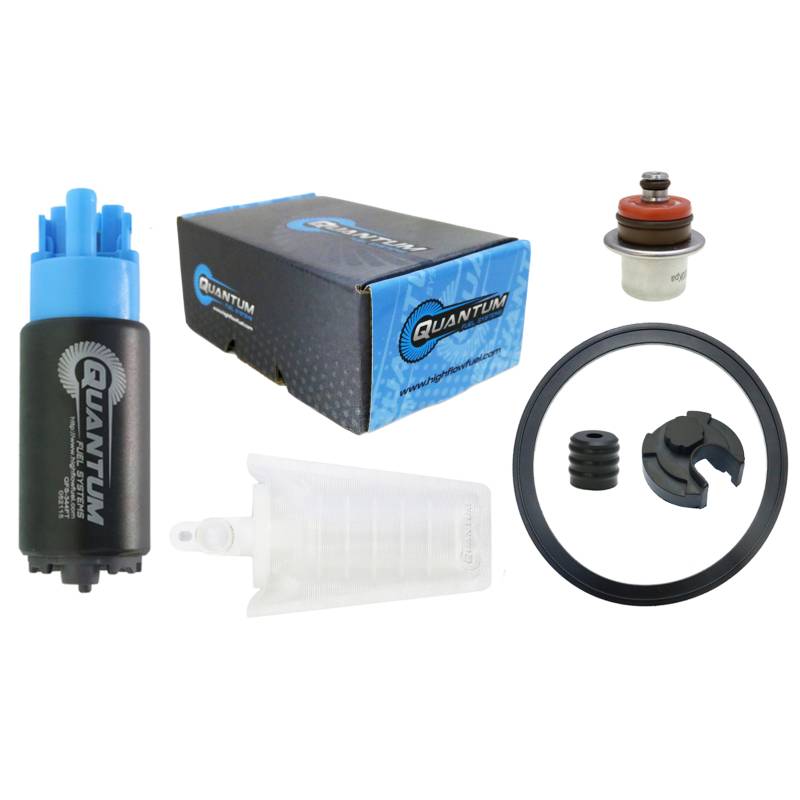

The QFS-344FT-P is a Polaris specific direct drop-in 265lph fuel pump kit that includes the strainer and tank seal to upgrade the Polaris assembly correctly.   If you have a turbo setup, or plan to turbocharge your Polaris at some point in the future, this is an excellent alternative to unreliable external pump setups or Walbro intank pumps which are not a direct a direct drop-in and in many instances draw too many amps for the Polaris charging system.  If your machine has minor modifications such as exhaust, intake, etc then this pump can be used, but is not necessary.  An OEM-volume pump kit can be found by searching for part # HFP-382P.



HFP replacement fuel pumps, modules, assemblies, and kit components are designed to meet or exceed OEM specifications, and feature upgrades that improve on the OEM design. Upgraded polymers, brushes, and commutators ensure long life and durability in multiple fuel blends.  Each HFP fuel pump and installation kit is backed by a lifetime free replacement warranty.  If there is any issue of any kind at any time, give us a call or email us and we will replace the pump free of charge.



Features & Benefits:

  • OEM or better performance

  • Polished corrosion-resistant case to help minimize seizing during non-operation

  • Specifically designed for quiet operation

  • Drop-in replacement

  • Gradient density fuel strainer for superior contaminant filtration

  • Patented check valve technology

  • Compatible with modern ethanol-infused pump gasoline

Shipping: FREE PRIORITY SHIPPING WITHIN THE US & TERRITORIES
Pricing: $89.98
Qty:
USPS Priority Mail / First Class Small Items

Description

Extended Description > New Page 1

SPECIFICATIONS:

  • 11mm OD (0.433") parallel inlet

  • 8mm OD (0.315") outlet

  • 38mm (1.540") pump body diameter

  • 120mm (4.75") length

  • 65mm (2.65") case length (length of black metal body only)

  • Coating: corrosion resistant black plated steel w/ laser etched serial number.

  • Bypass valve set at 125.8psi, higher than both Walbro GSS series 255LPH pumps, and Walbro 400/ 450LPH pumps

  • Intank/ submersible design, cannot be used outside of tank

  • May be used with return or returnless fuel systems, including PWM (pulse modulated systems)

  • Integrated check valve built into fuel pump outlet.

  • Can be used with EFI or carbureted applications (in most cases the stock EFI fuel pressure regulator can be used, carbureted applications will require aftermarket bypass style regulator)

  • Can be used with gasoline or E85 (E85 will lower lifespan of this pump)

Extended Description

New Page 1

SPECIFICATIONS:

  • 11mm OD (0.433") parallel inlet

  • 8mm OD (0.315") outlet

  • 38mm (1.540") pump body diameter

  • 120mm (4.75") length

  • 65mm (2.65") case length (length of black metal body only)

  • Coating: corrosion resistant black plated steel w/ laser etched serial number.

  • Bypass valve set at 125.8psi, higher than both Walbro GSS series 255LPH pumps, and Walbro 400/ 450LPH pumps

  • Intank/ submersible design, cannot be used outside of tank

  • May be used with return or returnless fuel systems, including PWM (pulse modulated systems)

  • Integrated check valve built into fuel pump outlet.

  • Can be used with EFI or carbureted applications (in most cases the stock EFI fuel pressure regulator can be used, carbureted applications will require aftermarket bypass style regulator)

  • Can be used with gasoline or E85 (E85 will lower lifespan of this pump)
