GENUINE Innovate 3806 LM 2 Digital Air/Fuel (Single Channel O2) Ratio Meter & OBD II/CAN Scan Tool (3806)

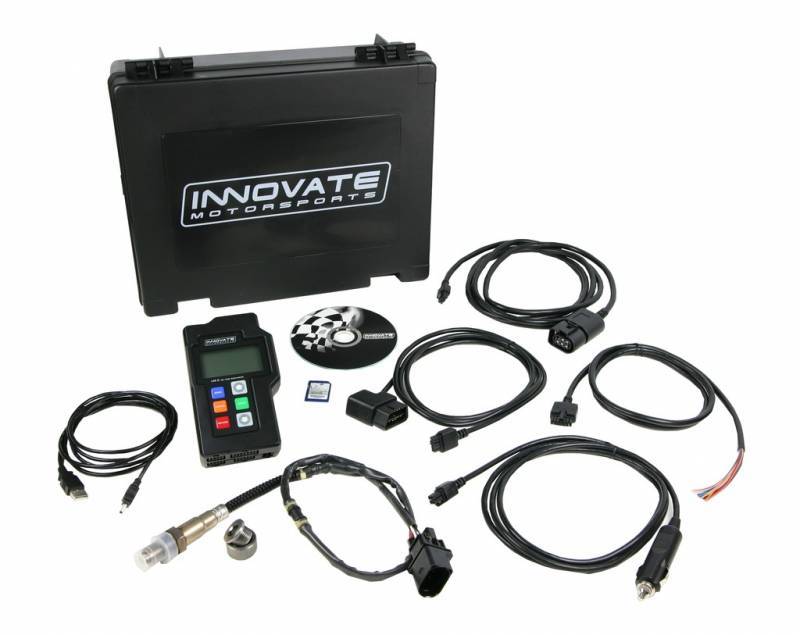

LM-2 "COMPLETE"
Kit includes the LM-2 meter, Bosch wide-band oxygen sensor, 8 ft sensor cable,
cigarette-lighter power adapter, analog in/out cable, ODB-II/CAN interface
cable, SD memory card, USB cable for PC connection, weld-in bung and plug, and
manual. Carrying Case also included!
The LM-2 combines an air/fuel ratio meter, a full-function 32-channel datalogger,
and powerful software to deliver a complete tuning workshop for less than the
cost of one dyno day. Whether you have a piggy-back fuel controller, race carb,
aftermarket ECU, ODB-II tuning software, or a flash/chip programmer, an LM-2 is
the tool you need to dial in maximum HP. The meter?s award-winning digital
signal processing technology provides data on exactly how rich or lean an engine
is running at any load. The LM-2?s self-calibrating circuitry also compensates
for changes in temperature, altitude, and sensor condition.
↓ See below for additional information ↓
Description
-
Patented ?Direct Digital? Wideband Technology
-
Wideband O2 Compatible with ALL fuel types
-
Single or Dual Channel A/F Version Available
-
OBD-II Scan tool- read/clear DTCs and log up to 16 channels of CAN OBD-II Data
-
Log directly to SD card
-
Playback log data on screen and/or with powerful LogWorks software (included)
-
Large high-contrast graphics LCD
-
Built-in RPM converter (direct frequency or with optional inductive clamp)
-
4 fully-differential analog inputs
-
2 configurable linear analog outputs
-
Positive lock connectors for all connections
-
Innovate MTS serial IN and OUT
-
USB connection to your PC
The LM-2
also features two fully programmable linear analog outputs to connect to analog
gauges, dyno computers, ECUs, piggyback controllers, and other devices with
analog inputs. With the provided LM Programmer software these analog outputs may
also be defined by the user.
Details
- INV-3806
- INV-3806
- Innovate Motorsports
- New
Categories
Shipping Information
- Item Requires Shipping
- 6.0 lbs.
- W11.0000” x H5.0000” x L14.0000”
- USPS Priority Mail / First Class Small Items
- FREE PRIORITY SHIPPING WITHIN THE US & TERRITORIES
