GENUINE Innovate 3807 LM 2 Digital Air/Fuel (Dual 2 Channel O2) Ratio Meter & OBD II/CAN Scan Tool (3807)

INV-3807
New Page 1

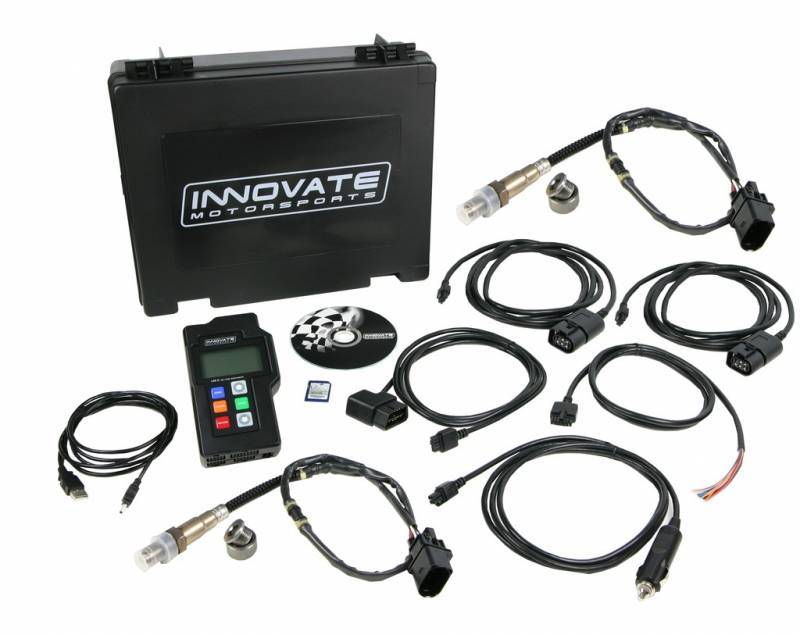

LM-2 Dual "COMPLETE" Kit includes the LM-2 meter, (2) Bosch wide-band oxygen sensors, (2) 8 ft sensor cables, cigarette-lighter power adapter, analog in/out cable, ODB-II/CAN interface cable, SD memory card, USB cable for PC connection, (2) weld-in bung and plug kits, and manual. Carrying Case also included!

The LM-2 combines an air/fuel ratio meter, a full-function 32-channel datalogger, and powerful software to deliver a complete tuning workshop for less than the cost of one dyno day. Whether you have a piggy-back fuel controller, race carb, aftermarket ECU, ODB-II tuning software, or a flash/chip programmer, an LM-2 is the tool you need to dial in maximum HP. The meter?s award-winning digital signal processing technology provides data on exactly how rich or lean an engine is running at any load. The LM-2?s self-calibrating circuitry also compensates for changes in temperature, altitude, and sensor condition.



↓ See below for additional information ↓

Shipping: FREE PRIORITY SHIPPING WITHIN THE US & TERRITORIES
Pricing: $669.00
Qty:
USPS Priority Mail / First Class Small Items

Description

New Page 1

  • Patented ?Direct Digital? Wideband Technology

  • Wideband O2 Compatible with ALL fuel types

  • Single or Dual Channel A/F Version Available

  • OBD-II Scan tool- read/clear DTCs and log up to 16 channels of CAN OBD-II Data

  • Log directly to SD card

  • Playback log data on screen and/or with powerful LogWorks software (included)

  • Large high-contrast graphics LCD

  • Built-in RPM converter (direct frequency or with optional inductive clamp)

  • 4 fully-differential analog inputs

  • 2 configurable linear analog outputs

  • Positive lock connectors for all connections

  • Innovate MTS serial IN and OUT

  • USB connection to your PC

The LM-2 also features two fully programmable linear analog outputs to connect to analog gauges, dyno computers, ECUs, piggyback controllers, and other devices with analog inputs. With the provided LM Programmer software these analog outputs may also be defined by the user.


Details

Categories

Shipping Information

  • Item Requires Shipping
  • 7.0 lbs.
  • W11.0000” x H5.0000” x L14.0000”
  • USPS Priority Mail / First Class Small Items
  • FREE PRIORITY SHIPPING WITHIN THE US & TERRITORIES
