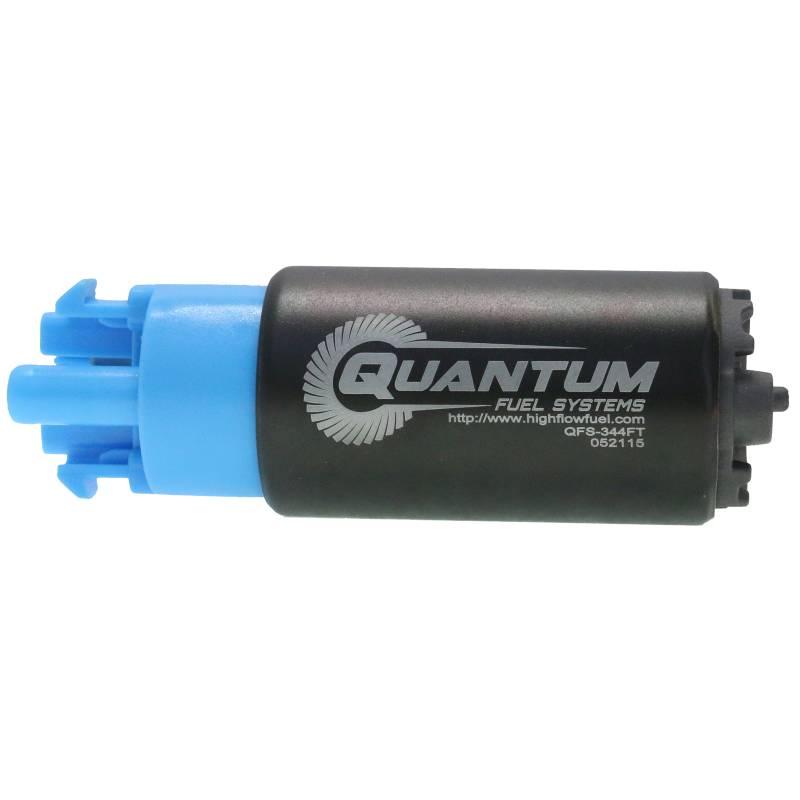

Quantum Infiniti /265LPH Intank Fuel Pump Q40 2015

QFS-344FT-511
New Page 1

Replaces Deatschwerks Part # DW65c, DW300c / Aeromotive # 11165



This pump installs directly into any 1998-2004 Mustang, and does not require reprogramming the FPDM (fuel pump driver module) nor does it require wiring splicing.  It is a true direct replacement performance 265LPH pump for 1999-2004 Mustang GT, V6, Bullitt, Mach 1, and 1999-2001 Cobra (as well as 1998 Mustangs originally sold in California with 8th digit of VIN X, 4, or V).



DESIGN FEATURES:

  1. Correct strainer shape and orientation ensures the pump does not suck air (which leads to pump cavitation and failure)

  2. Wiring pigtail (included when necessary) designed to handle increased amperage draw of 265LPH fuel pump, unlike competitors' wiring which includes a thin/ unsafe 20 gauge pigtail.

  3. Plug and play wiring harnesses included when available.  More harnesses being developed continuously.

  4. Corrugated E85 compatible flex hoses included with GM, BMW, and universal kits.

  5. Independently flowtested by RC Engineering

  6. Serialized fuel pump body guarantees Lifetime warranty.  Quantum has built its reputation on providing a lifetime warranty for all its OEM and performance fuel pumps.

↓↓ Please see below for additional specifications ↓↓

Shipping: FREE PRIORITY SHIPPING WITHIN THE US & TERRITORIES
Pricing: $79.98
Qty:
USPS Priority Mail / First Class Small Items

Description

Extended Description > New Page 1

SPECIFICATIONS:

  • 11mm OD (0.433") parallel inlet

  • 8mm OD (0.315") outlet

  • 38mm (1.540") pump body diameter

  • 120mm (4.75") length

  • 65mm (2.65") case length (length of black metal body only)

  • Coating: corrosion resistant black plated steel w/ laser etched serial number.

  • Bypass valve set at 125.8psi, higher than both Walbro GSS series 255LPH pumps, and Walbro 400/ 450LPH pumps

  • Intank/ submersible design, cannot be used outside of tank

  • May be used with return or returnless fuel systems, including PWM (pulse modulated systems)

  • Integrated check valve built into fuel pump outlet.

  • Can be used with EFI or carbureted applications (in most cases the stock EFI fuel pressure regulator can be used, carbureted applications will require aftermarket bypass style regulator)

  • Can be used with gasoline or E85 (E85 will lower lifespan of this pump)
