Quantum TBI to LSX Swap Fuel Pump 58PSI (LM7 LR4 LQ4 LQ9 L33) EP381 Direct Fit 82-95 GM, Replaces WIX 33737

SKU: QFS-F201

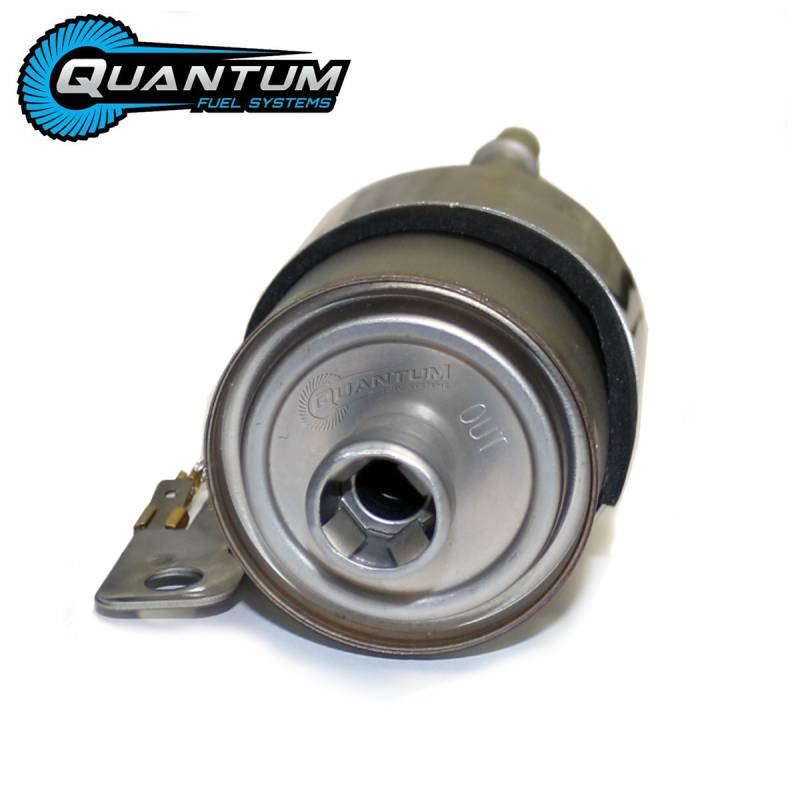

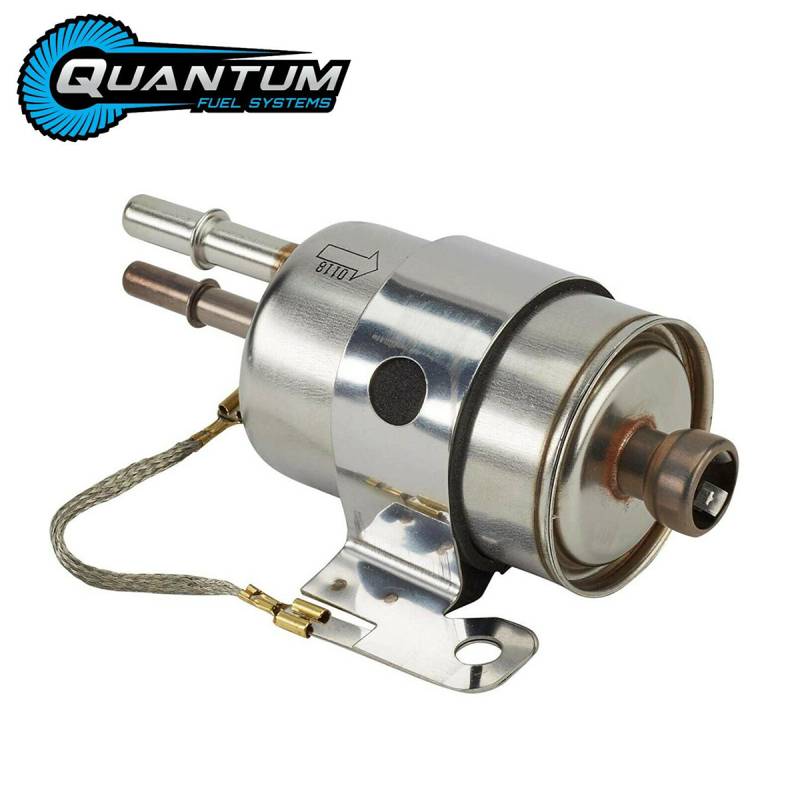

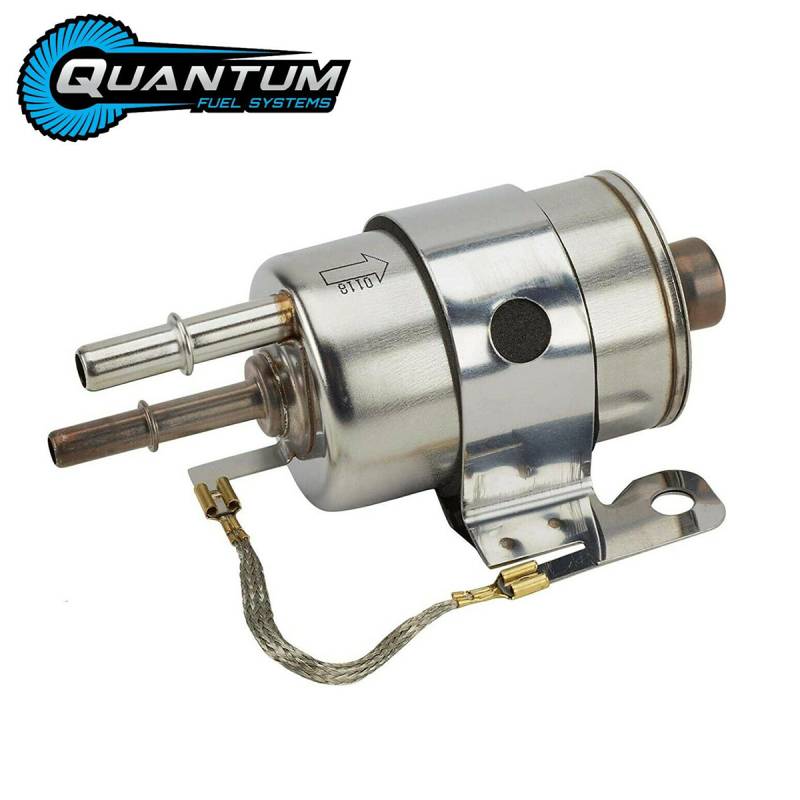

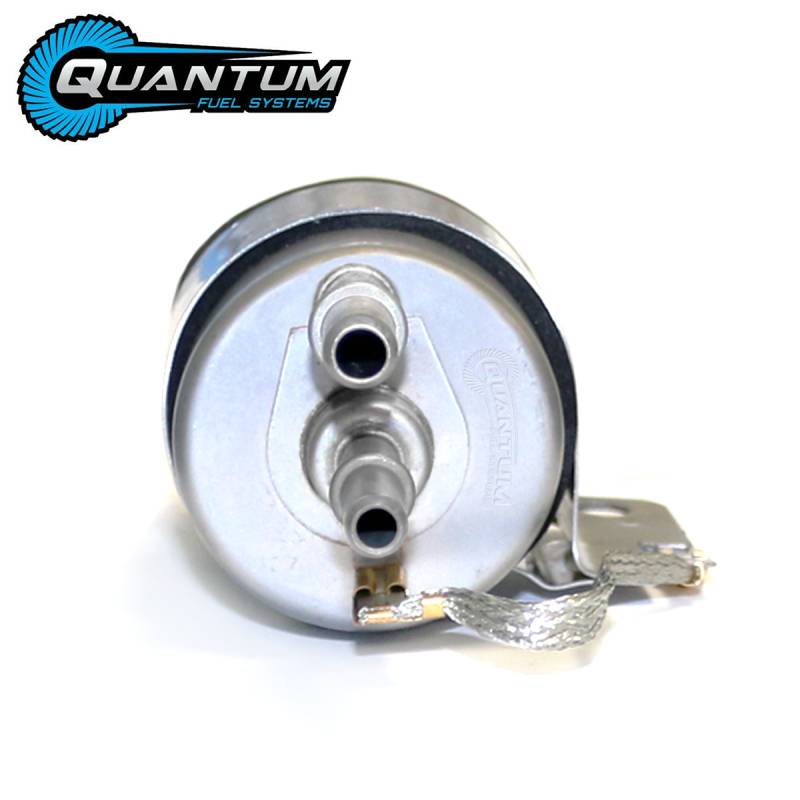

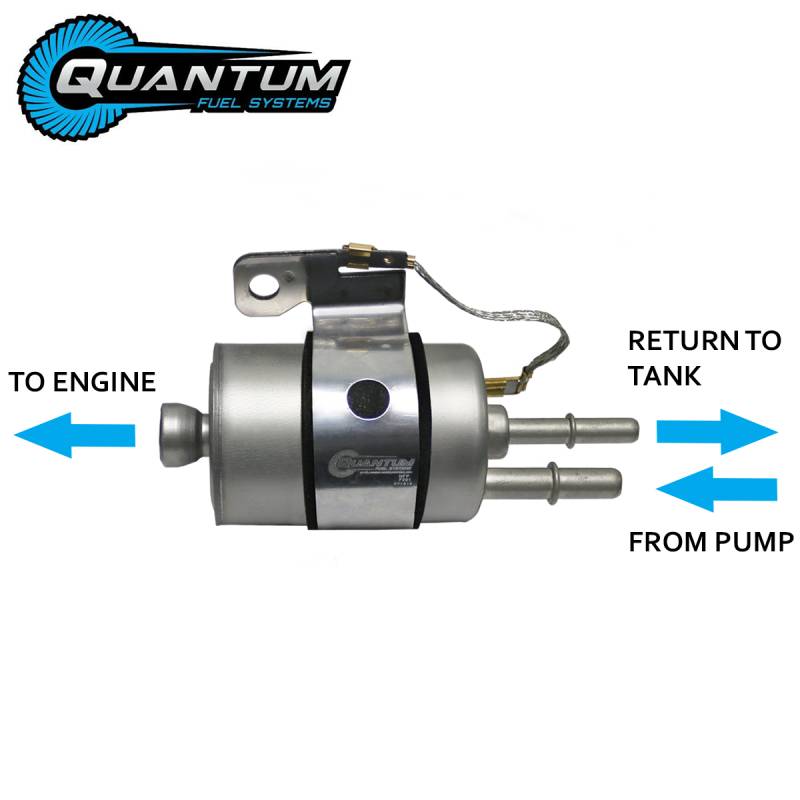

Using the C5 Corvette regulator/ filter is the tried and true method of providing all LS-based motors with the 58psi base pressure they require. Usually mounted close to the tank, this regulator has a fixed (non-adjustable) fuel pressure of 58psi and also provides inline filtration between the fuel pump and the injector rail. Both the feed (from the tank) and the return will connect to one side, and the single outlet will go to the injector rail on the motor. Includes mounting bracket and grounding strap as shown.

SPECIFICATIONS:

58PSI Fixed Pressure
Nominal Micron Rating: 5
Combination Fuel Pressure Regulator/ Filter
Inlet Size: 3/8" Male Quick Connect
Return Size: 5/16" Male Quick Connect
Feed Size (to Engine): 3/8" Female Quick Connect
Supports 550-600HP
100% Brand New
Lifetime Warranty
Fits All 1997+ Gen III and Gen IV LS Series 4.8, 5.3, 5.7L, 6.0, 6.2, 7.0L motors

Shipping: FREE FIRST CLASS SHIPPING WITHIN THE US & TERRITORIES

Pricing: $39.98

Description
Details
Shipping

Description

SPECIFICATIONS

Pressure: 58PSI (fuel pressure set by using C5 Corvette regulator/ filter or rail mounted regulator found on 2002 and earlier fuel rails)
Flow: 160LPH
Noise Output: QUIET
Design: Intank EFI Fuel Pump
Interchange: AC Delco EP381
Includes: Pump, Strainer, Tank Seals, Clamps (all items shown)

FEATURES:

Direct drop-in for all 1982-1995 GM TBI fuel pump hangers
Provides 58psi fuel pressure required by all LS Engines
Supports 500hp naturally aspirated
Low amperage draw designed for factory TBI bulkhead connectors
Stainless steel hose clamps
Submersible high pressure hose exceeds SAE 30R10 standards
New fuel tank seals to cover all TBI hanger diameters

DIMENSIONS:

Overall Length: 5"
Length of Pump Body Metal Case: 3 3/8"
Pump Body Diameter: 1 1/2"
Inlet Diameter: 3/4"
Outlet Diameter: 3/8"
