Quantum 255LPH Fuel Pump Nissan Maxima 1992 - 1994

HFP-341

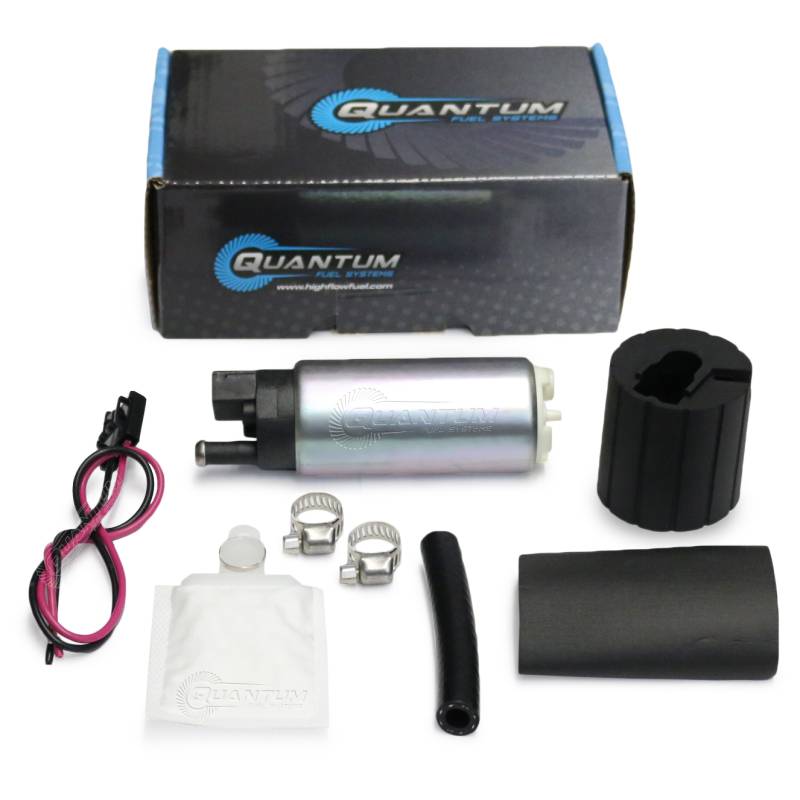

Looking for an alternative to loud, unreliable, and expensive Walbro in-tanks? Try one of our HFP 255LPH high pressure fuel pumps  Proven reliability, verified pressure output by RC Engineering, and a Lifetime Warranty (unheard of in the performance fuel pump industry).  A key feature of our HFP 255LPH fuel pump is the bypass valve, which is set at a higher PSI than the Walbro line, making our pumps especially suited to turbocharged and supercharged applications, where consistent fuel pressure is a necessity.  A clean sheet vane-impeller design lends itself to quieter operation compared to other 255LPH intank pumps.  Instead of the vibrating hum that is usually associated with aftermarket fuel pumps, our pumps produce a very faint "wheen" sound during priming (when the key is first turned on) and are virtually SILENT when the engine is running.  All of our fuel pumps are QS9000 quality certified, and include vehicle specific installation kits.

This is the exact same pump we run in our 86 LX Coupe shop car powered by a Ford Racing 5.0L Coyote motor which makes 407rwhp/388rwtq.  Members on http://www.corral.net are using this pump with supercharged/ turbocharged combos making over 500rwhp.

Refer to the flow tests below done by RC Engineering.  The higher the pressure, the more our pumps outflow their Walbro equivalent.

FREE USPS Priority 2-3 day shipping to the Continental US.  All orders ship out the same business day, if ordered by 5PM PST.



FREE USPS Priority 3-4 Day shipping to Alaska, Hawaii, Puerto Rico, APO/FPO/DPO and US Territory addresses.



UPS Overnight and UPS 2-Day shipping also available during checkout.



WORLDWIDE SHIPPING:  International orders ship out USPS Priority Mail International for $29.95. Delivery times are 3-4 days to Canada, and 5-10 days for most other countries.  NOTE: We have many other shipping options available ranging for DHL Express, UPS Worldwide Expedited, and USPS (EMS) Express Mail International. Please email us for shipping quotes.

Shipping: FREE FIRST CLASS SHIPPING WITHIN THE US & TERRITORIES
Pricing: $69.98
Qty:
USPS Priority Mail / First Class Small Items

Description

New Page 2

Specifications:

Noise Level: Nearly Silent

Condition: 100% BRAND NEW
Design: Intank
Flow: 255LPH
Minimum Voltage: 12V
Operating Pressure: 15-100 PSI - final fuel pressure set by regulator

Warranty: LIFETIME

Dimensions:

4 3/4" Long from inlet tip to outlet tip
3 1/8" Long for the metal case
1 5/8" Wide for the metal case
Inlet width: 5/16" (341/ 342), 7/8" (340), 3/4" (343)
Outlet width: 5/16"

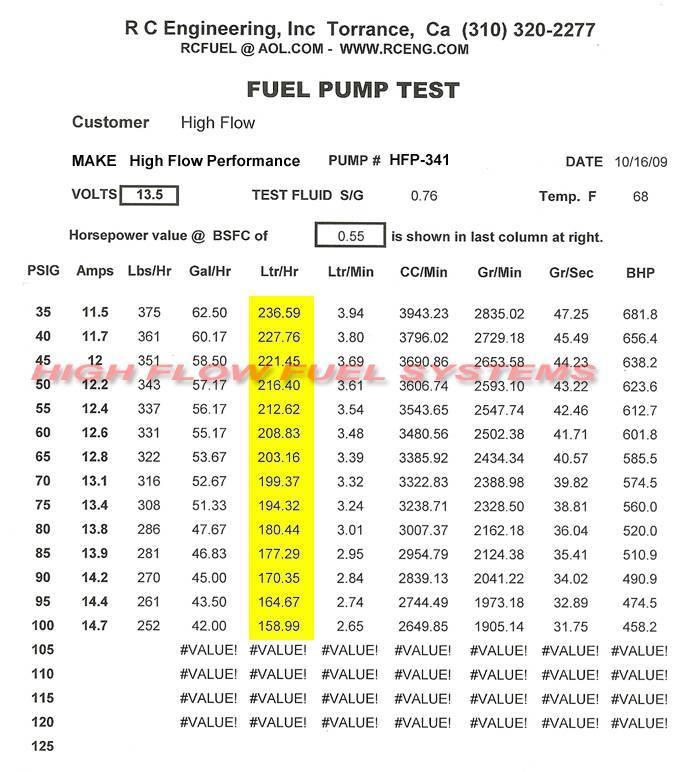

Flowsheets:

HFP-341:



Walbro GSS341:
